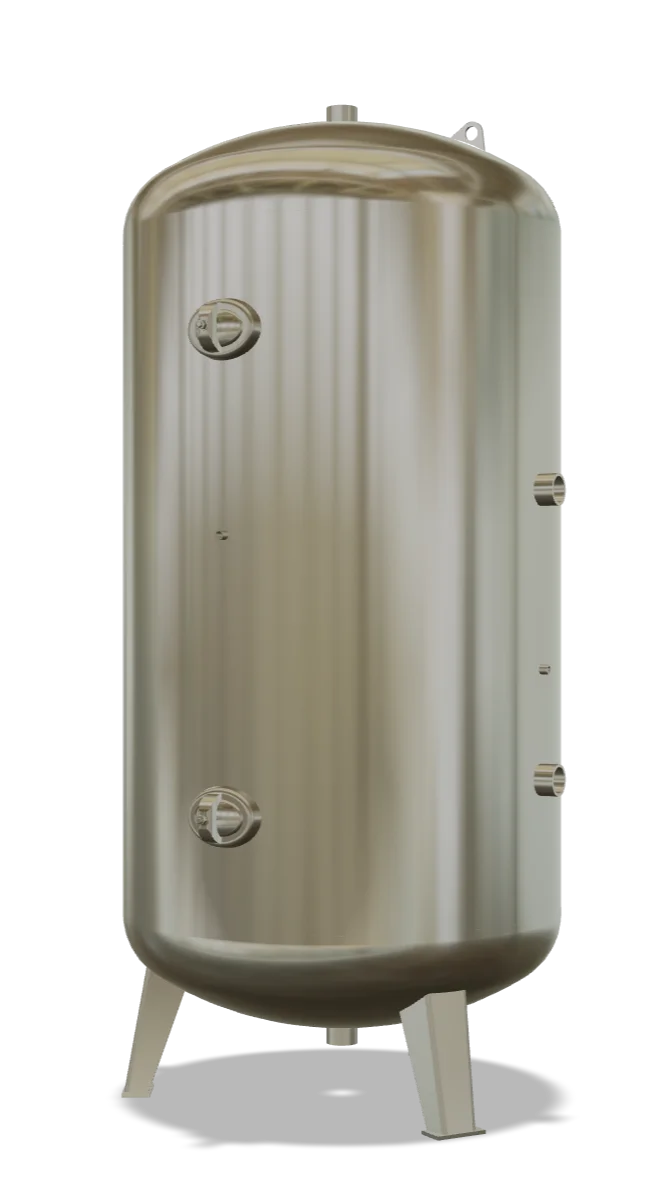

Standard vessel - 11 bar vertical position - 3,000 litre

MB 020103-1.3000

Diameter:
Height:
Tilt height:
appx. Weight:

1,250 mm
2,760 mm
2,850 mm
660 kg

- Manufactured according to PED 2014/68/EU – AD 2000, Module: H1
- Operating conditipressure variations acc. to AD2000-S1 (10/2000):
  1000 start-up and shut-downs and 20% pressure fluctuation range
- Ambient temperature from -20°C to +50°C

Shipping dimensions (LxWxH): 2,810 x 1,250 x 1,350 mm
Stackable, but can not bear any loads!
Customs tariff number: 731 100 99

Drawings

Handhole



Manhole

Drawing - 11 bar vertical position 3,000 l  primed

primed


Drawing - 11 bar vertical position 3,000 l  galvanized

galvanized


Drawing - 11 bar vertical position 3,000 l  manhole primed

primed


Drawing - 11 bar vertical position 3,000 l  manhole galvanized

galvanized

This email address is being protected from spambots. You need JavaScript enabled to view it.   This email address is being protected from spambots. You need JavaScript enabled to view it.   This email address is being protected from spambots. You need JavaScript enabled to view it.   This email address is being protected from spambots. You need JavaScript enabled to view it.


Illustrations and descriptions may vary from the originals
