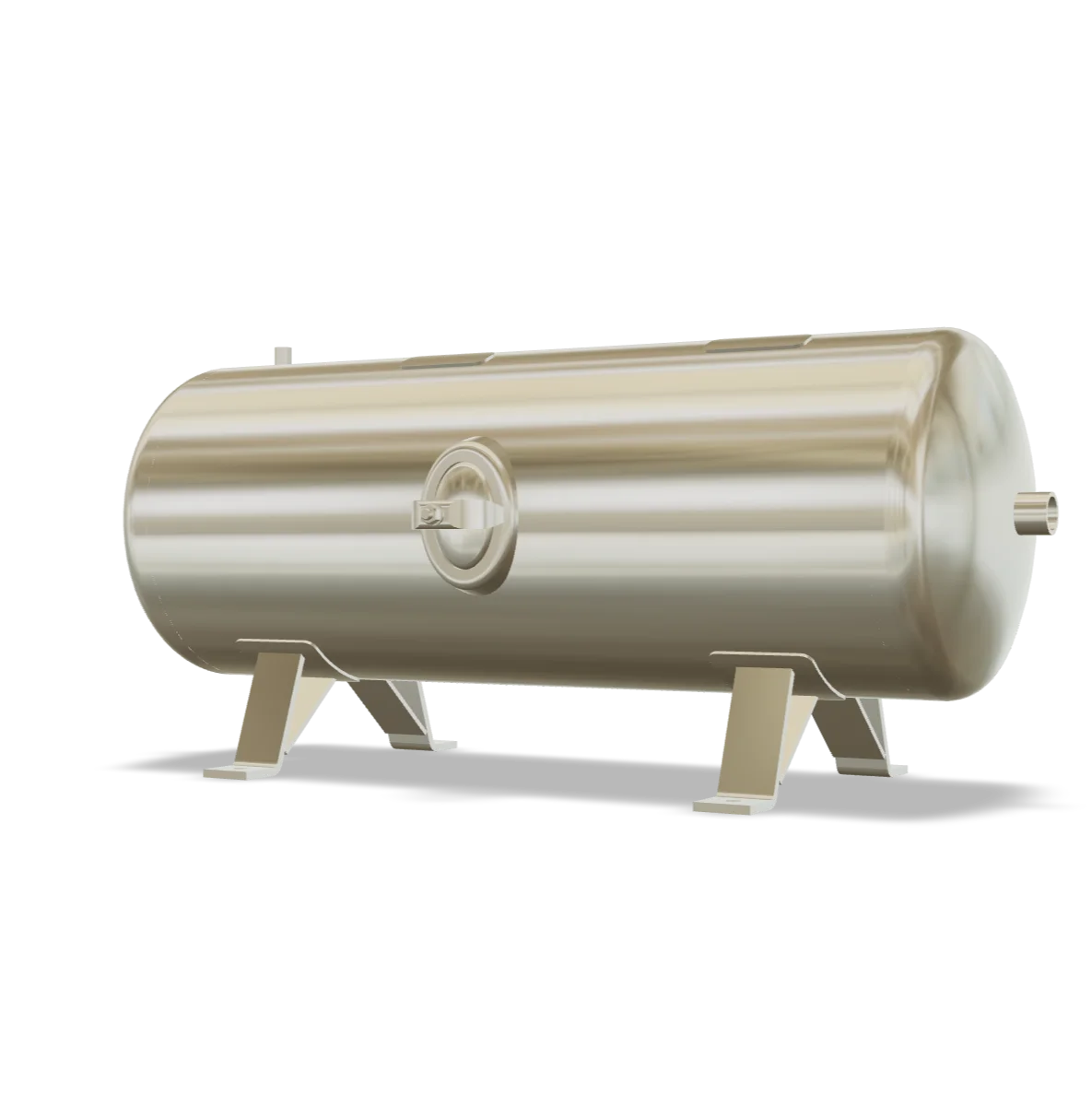

High pressure vessel - 17 to 41 bar horizontal position - 250 litre

- Manufactured according to PED 2014/68/EU – AD 2000, Module: H1
- Operating conditipressure variations acc. to AD2000-S1 (10/2000):
  1000 start-up and shut-downs and 20% pressure fluctuation range
- Ambient temperature from -10°C to +50°C

Shipping dimensions (LxWxH): max 1,500 x 500 x 672 mm
Stackable, but can not bear any loads!
Customs tariff number: 731 100 91

Pressure stages

primed / galvanized

MB 141224-3.250

MB 141225-3.250

MB 141226-3.250

MB 141227-3.250

Diameter:
Length:
Height:
appx. Weight:

500 mm
1,410 mm
632 mm
140 kg

Diameter:
Length:
Height:
appx. Weight:

500 mm
1,410 mm
632 mm
140 kg

Diameter:
Length:
Height:
appx. Weight:

500 mm
1,420 mm
632 mm
150 kg

Diameter:
Length:
Height:
appx. Weight:

500 mm
1,430 mm
632 mm
190 kg

MB 141228-3.250

Diameter:
Length:
Height:
appx. Weight:

500 mm
1,430 mm
632 mm
190 kg
