Standard vesselsConfigurator
We offer you standard vessels from 50 liters to 3,000 liters with 11 and 16 bar. High-pressure vessels, vacuum vessels, and other pressure vessels are also available and can be coated according to your requirements.
▲
- 50 l
- 90 l
- 150 l
- 250 l
- 350 l
- 500 l
- 750 l
- 1,000 l
- 1,500 l
- 2,000 l
- 3,000 l
- 4,000 l
- 5,000 l
- 6,000 l
- 7,000 l
- 8,000 l
- 9,000 l
- 10,000 l
▼
Details

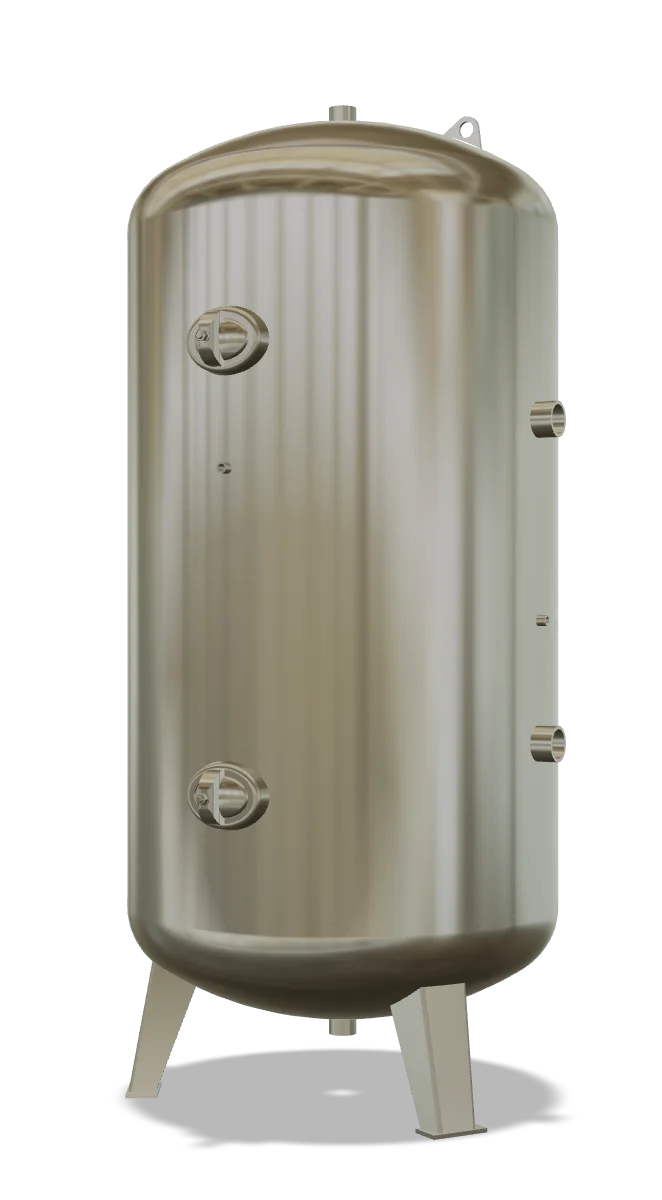

Pressure vessels 2,000 Liters, 11 bar, stehend (Handhole)
MB 020103-1.2000
Features
Built according to
DGRL 2014/68/EU – AD 2000, Module: H1
DGRL 2014/68/EU – AD 2000, Module: H1
Operating Conditions
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
Ambient Temperatures
-20°C to +50°C
-20°C to +50°C
Dimensions
Approx. Weight
500 kg
500 kg
Diameter
1,100 mm
1,100 mm
Height
2,470 mm
2,470 mm
Tilting Dimension
2,560 mm
2,560 mm
Augmented Reality (AR)
Shipping Information
Dimensions (LxWxH)
2,520 x 1,100 x 1,200 mm
2,520 x 1,100 x 1,200 mm
Approx. Weight
500 kg
500 kg
Country of Origin
Germany
Germany
Customs Tariff Number
731 100 99
731 100 99
Drawing
MB 020103-1.2000G
Primed
MB 020103-1.2000V
Galvanized
Illustrations and details may differ from the original.
